Footswitch in N1MM

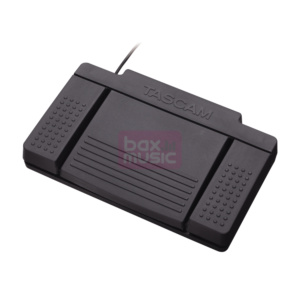

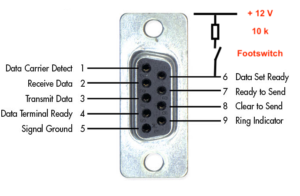

In N1MM kan je middels een footswitch de functietoetsen bedienen. Op die manier kan je dus typen met twee handen en met één voet de funtietoets bedienen. De footswitch komt op de DSR input en +12V via een 10 k weerstand. DSR input is PIN 6 van de DB9 connector. Zie schema.

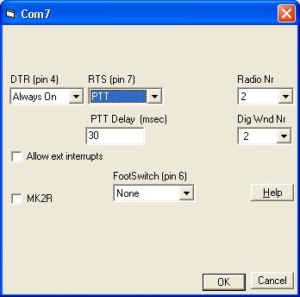

Daar ik niet zo snel type, is dit een mooie oplossing voor mij. Als ik aan het runnen ben in N1MM, dan type ik de call van het station in. Als ik bij de tweede of derde letter ben, bedien ik de footswitch. Nu gaat N1MM al seinen met de call. En als ik gewoon verder ga met typen, zal de call in zijn geheel verzonden worden inclusief rst/volgnummer. Hierdoor hoef je dus niet eerst de hele call te typen en dan pas op F2 te drukken. Je hebt dus iets meer tijd gewonnen. Welke actie de footswitch moet hebben, kan je instellen in N1MM:

  • None – No footswitch
  • ESM Enter – Pressing Footswitch will cause the same action as pressing Enter key in ESM mode
  • Typing Focus – Pressing Footswitch will switch typing focus
  • Switch Radios – Pressing Footswitch will switch the radios (in SO2R)
  • Normal – Pressing the footswitch it will behave if it was connected to the PTT of the active transmitter and is automatically connected to the proper (active) radio.When the footswitch is released the focus will be set to main Entry window
  • F1 – Pressing Footswitch will cause the same action as pressing function key F1
  • F2 – Pressing Footswitch will cause the same action as pressing function key F2
  • F3 – Pressing Footswitch will cause the same action as pressing function key F3
  • F4 – Pressing Footswitch will cause the same action as pressing function key F4
  • F11 – Pressing Footswitch will cause the same action as pressing function key F11
  • F12 – Pressing Footswitch will cause the same action as pressing function key F12
